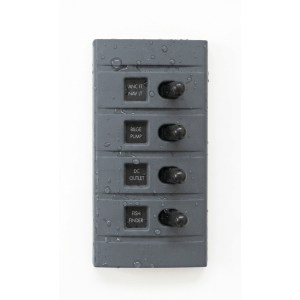

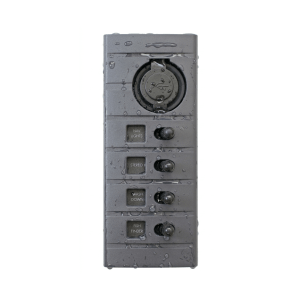

Connex Waterproof Switch Panel 4 Plus Marine

Engineered for reliability in demanding environments, Connex waterproof switch panels deliver safe and convenient control for electrical systems on boats, caravans, RVs, and outdoor equipment. Built with an IP65 waterproof rating, each panel is fully sealed against moisture and dust, ensuring dependable performance in marine and all-weather conditions.

Designed with practicality in mind, Connex panels feature integrated fuse protection and LED indicators, making it easy to monitor circuits and identify blown fuses at a glance. Backlit labels provide clear visibility in low-light settings, while durable construction and high-quality components offer long-lasting resistance to corrosion and wear.

Whether used for navigation lights, bilge pumps, accessories, or power outlets, Connex waterproof switches combine robust protection with user-friendly design, making them the trusted choice for professionals and enthusiasts alike.

*Comes with 2 x 5amp fuse, 2 x 10amp fuse & Marine 1 Label sheet, 4 x Mounting screws.

AUSTRALIAN MADE.CONNEX WATER PROOF SWITCH PANELS

Frequently Asked Questions

What is the Connex Waterproof Switch Panel 4 Plus 12V Socket used for?
It provides four controlled switches for accessories along with a built in 12V socket for powering or charging extra devices.
Is it waterproof?
Yes. The panel has a sealed design and is splash resistant, making it suitable for outdoor and marine environments.
What can I plug into the 12V socket?
Common items include air pumps, small appliances, phone chargers, portable fridges, fans, and other 12V accessories.
Can it run LED lights?
Yes. It is fully compatible with low draw LED lighting and similar accessories.
Does it come pre wired?
It includes labelled wiring to help speed up installation.
Is the 12V socket covered?
Yes. It features a protective cap to keep water and dust out when not in use.
What vehicles can it be used in?
Caravans, camper trailers, 4WDs, boats, work vehicles, and off grid setups.
Do the switches light up?
Yes. The illuminated rocker switches make it easy to see what is turned on.
Is the panel easy to install?
Yes. Mount the panel, connect to a fused power supply, and wire each accessory to its switch.
Is it suitable for marine use?
Yes. The waterproof and corrosion resistant structure supports marine applications.

Tips & Tricks

Mount the panel near your main control area so all switches and the 12V socket are easy to access.
Use waterproof connectors and heat shrink tubing in damp environments.
Fuse each accessory line for added protection and safety.
Label each switch for quick identification when troubleshooting.
If you plan to run a fridge or high draw device from the 12V socket, ensure your wiring gauge is suitable.
Secure all wiring to prevent movement or chafing over rough terrain.

Installation Steps

Prepare the cut-out:
Mark the required dimensions (approx. 165 mm × 68 mm) and cut the opening. Deburr edges and test-fit the panel.
Mount the panel:
Use the supplied stainless steel screws to secure the panel in place. Avoid overtightening to preserve gasket sealing.
Wiring connections:
- Connect the main 12 V positive feed to the panel’s input terminal.
- Connect the main negative (ground) to a common grounding bar.
- Run output wires from each switch to the corresponding load or accessory.
- If equipped with a voltmeter or socket, follow wiring diagram (usually shares positive input).
Insert fuses:
Fit the correct-rated blade fuses for each circuit, matching load requirements.
Test operation:
After securing the front cover, power the system and test each switch. Confirm LEDs light up when active and that connected devices function properly.
Secure wiring:
Use cable ties and clips to prevent movement, vibration, or chafing. Protect wire entry points with rubber grommets.

Product Specifications

Specification	Value / Description
Model	Connex Waterproof Switch Panel 4 Plus 12V Socket
Switches	4 illuminated rocker switches
Socket Type	12V accessory socket with protective cap
Voltage	12V DC
Waterproof Rating	Waterproof front design suitable for outdoor and marine use
Construction	Durable, sealed faceplate and corrosion resistant materials
Compatibility	LED lights, pumps, radios, small appliances, phone chargers, portable fridges
Installation Type	Surface mount with labelled wiring
Applications	Caravans, boats, 4WDs, campers, work vehicles
Switch Indicator	Built in illumination
Current Capacity	Supports low and medium draw accessories
Maintenance	Keep sockets capped and connections secure
Panel Style	Compact, clean layout with functional accessory socket
Warranty	Manufacturer warranty included
