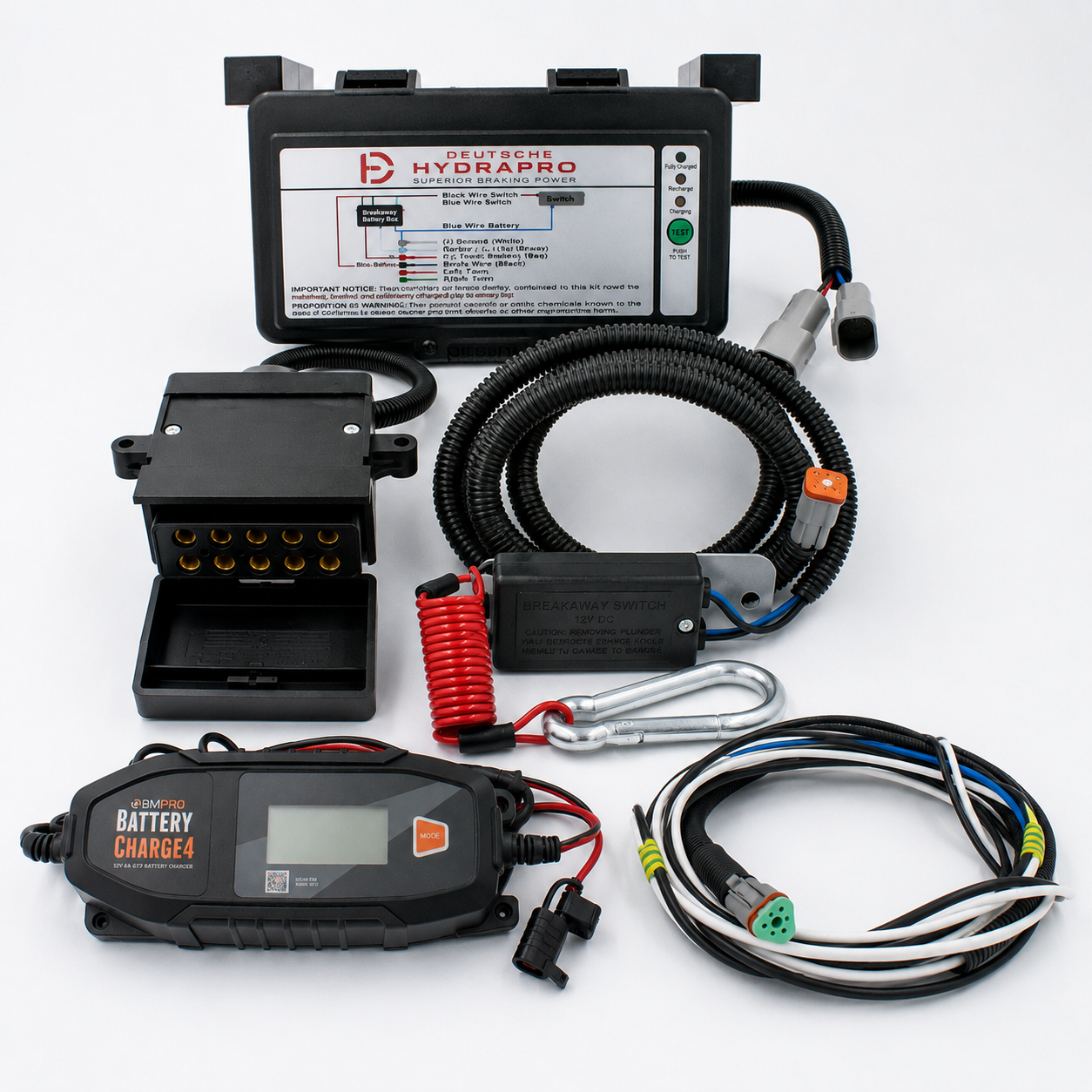

Kit Includes:
- Hydrapro Unit
- Breakaway Switch
- Install Kit*
- Charge Kit**
*Install kit includes Caravan Breakaway Curly Cord, Carabiner & Pins
** Charge kit includes BatteryCharge4, Trailer plug Adapter with Anderson Style
Specifications
Specifications
- Battery Type: Sealed Lead Acid (SLA)
- Battery Capacity: 10Ah

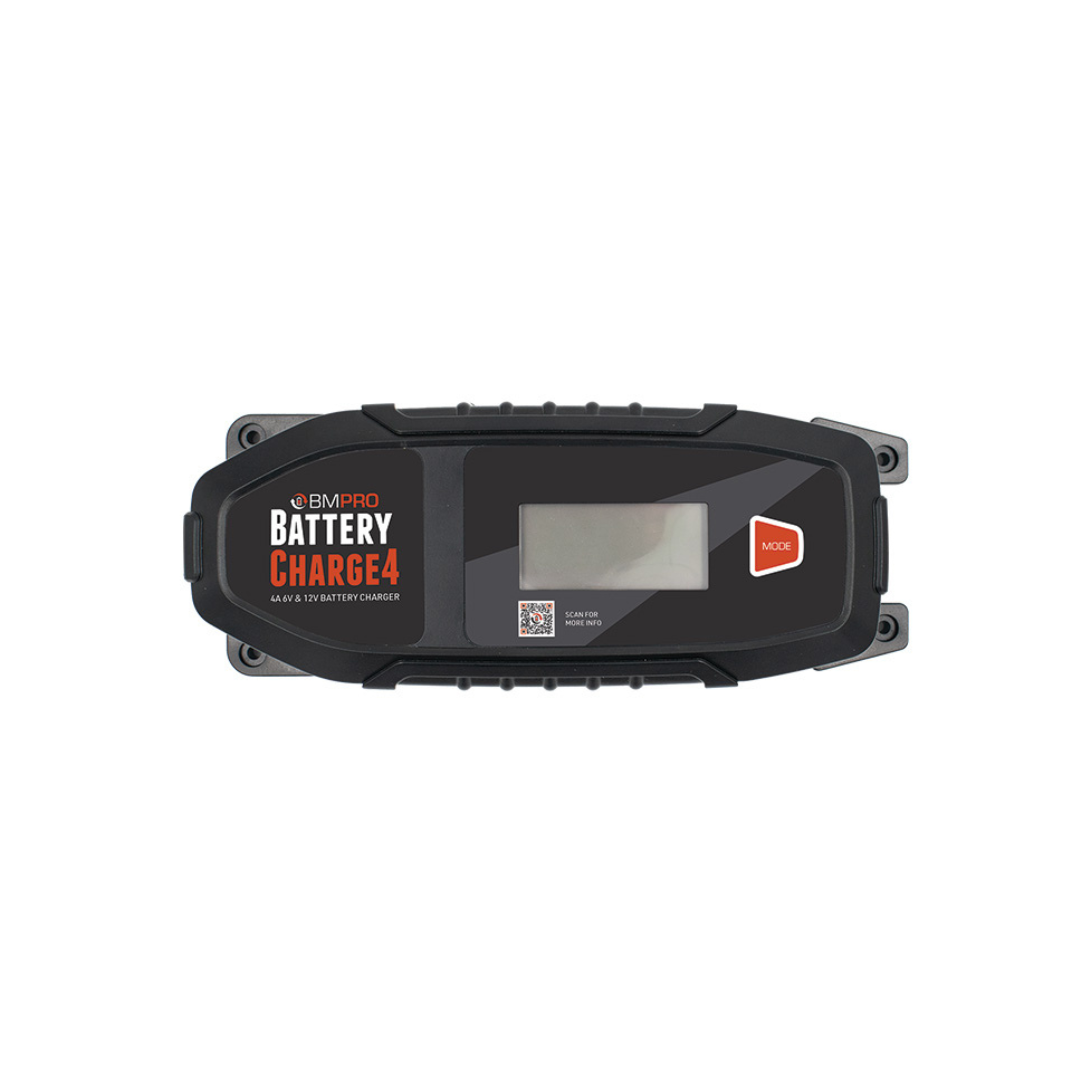

- Charger Included: BatteryCharge4
- Breakaway Cable Type: Curly Breakaway Cable
- Trailer Plug Adapter Included
- Application: Trailer Breakaway Battery Systems
- Suitable For: Caravans, Trailers, Horse Floats and Utility Trailers
- Installation: Trailer Mounted
Key Features
Key Features
- Complete Breakaway Battery Kit – Includes a 10Ah sealed lead acid battery, breakaway curly cable, BatteryCharge4 charger and trailer plug adapter.
- High-Capacity 10Ah Battery – Provides reliable reserve power to support emergency braking system operation.
- BatteryCharge4 Included – Maintains battery charge and helps maximise battery performance and service life.
- Trailer Plug Adapter Included – Allows convenient charging through the trailer plug connection while connected to a suitable tow vehicle.
- Durable Breakaway Curly Cable – Designed to activate the breakaway system if the trailer becomes detached from the tow vehicle.
- Suitable for Trailer Safety Applications – Ideal for supporting breakaway braking systems on caravans, trailers and horse floats.
Helpful Tips
Helpful Tips
- Regularly inspect the breakaway curly cable for signs of wear, corrosion or damage.
- Check that the breakaway cable can move freely and is not tangled, kinked or obstructed.
- Use the included BatteryCharge4 charger to help maintain battery charge during storage periods.
- Periodically test your breakaway braking system to verify correct operation.
- Inspect battery terminals and wiring connections during routine trailer maintenance.
- Keep the battery fully charged whenever possible to maximise reliability and service life.
- Ensure the breakaway cable is attached independently from the trailer safety chains when towing.
- Replace batteries that show signs of reduced performance, physical damage or age-related deterioration.
- Store the trailer in a cool, dry location where possible to help extend battery life.
- Use the supplied trailer plug adapter to conveniently maintain battery charge while connected to a suitable tow vehicle.
Installation Information
- Install the supplied 10Ah battery according to the manufacturer’s instructions.
- Connect the BatteryCharge4 charger as specified by the charging system requirements.
- Install the trailer plug adapter to enable battery charging through the trailer connection.
- Attach the breakaway curly cable to the breakaway switch and a suitable attachment point on the tow vehicle.
- Route all wiring away from moving parts, heat sources and potential pinch points.
- Test the breakaway system after installation to verify correct brake activation.
- Always follow the trailer manufacturer’s installation requirements and applicable Australian regulations.
